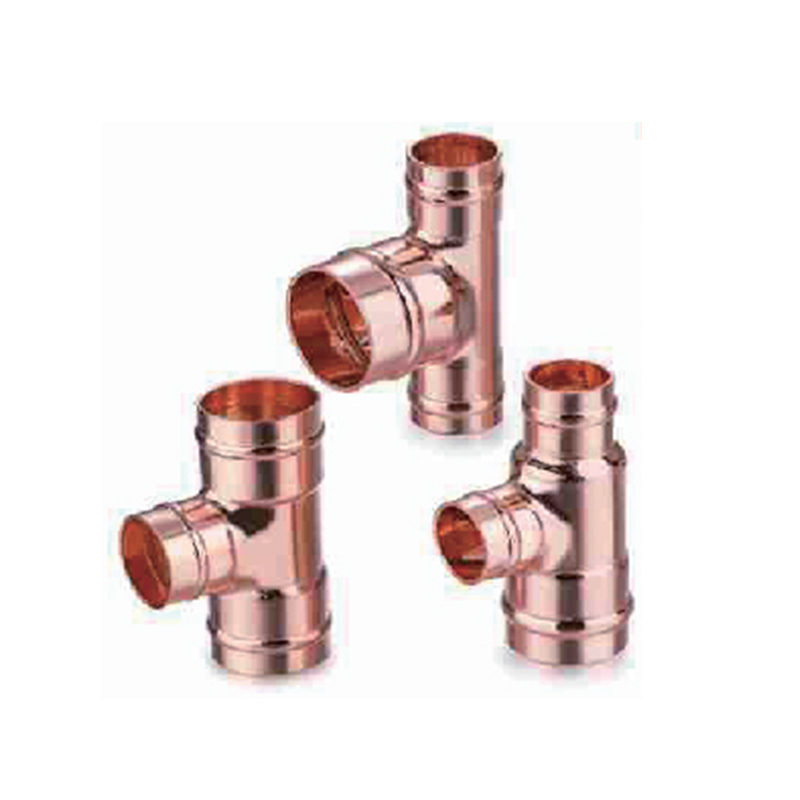

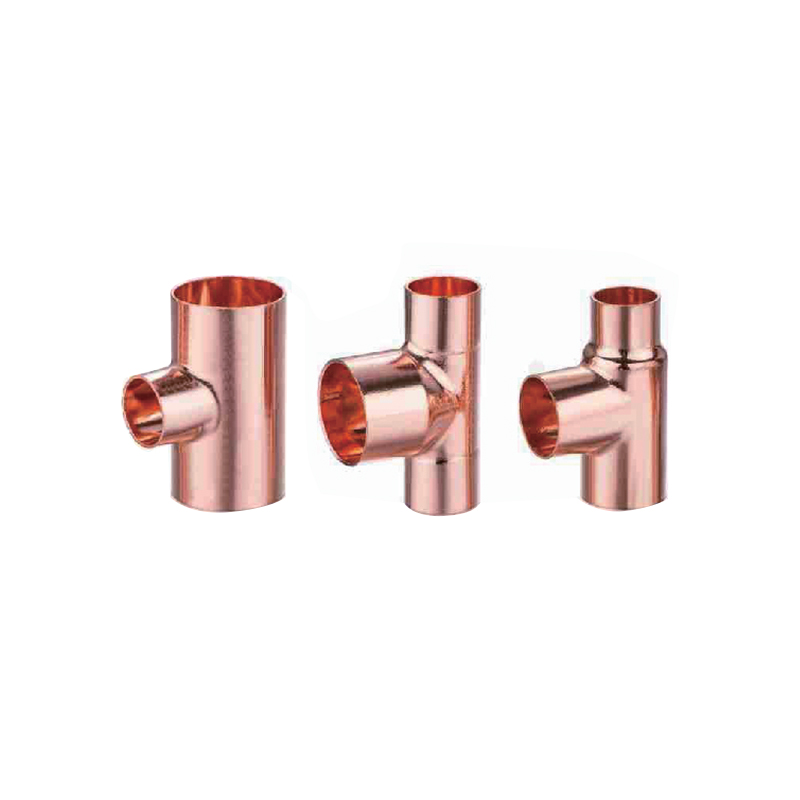

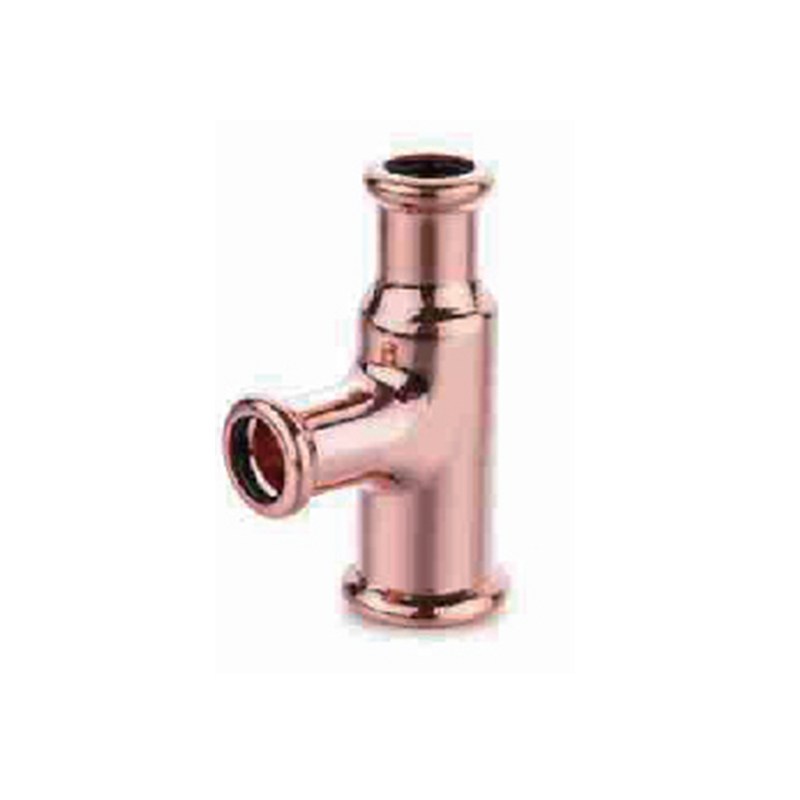

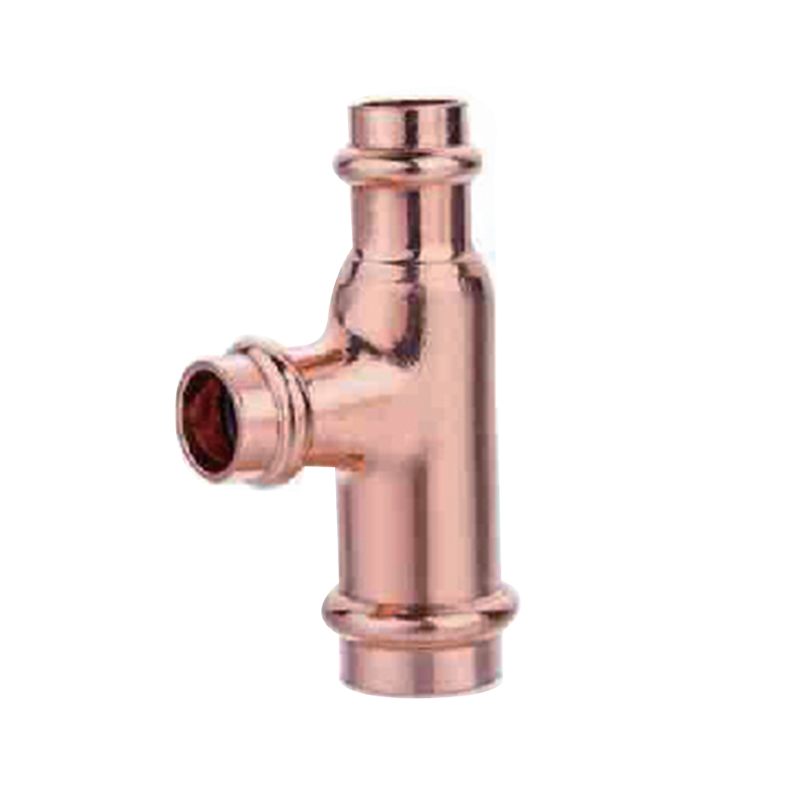

Refrigeration Reducing Tee Copper Tube

The Refrigeration Reducing Tee Copper Tube is a specialized copper fitting used in the HVAC (Heating, Ventilation, and Air Conditioning) and refrigeration industry. This fitting is designed to allow the transition of refrigerant flow from a larger diameter tube to a smaller one, or vice versa, while also providing a side outlet for branching off. The Reducing Tee is an essential component in the installation and maintenance of refrigeration systems, ensuring efficient fluid management and pressure distribution.

Design and Function
The design of the Refrigeration Reducing Tee Copper Tube is based on the principle of fluid dynamics, where the change in the cross-sectional area of the tube affects the flow rate and pressure of the refrigerant. The tee is manufactured with a primary inlet and outlet, with the outlet having a smaller diameter than the inlet. This reduction in size is crucial for controlling the flow of refrigerant and maintaining the desired pressure drop across the system.

Material and Construction
Copper is the like material for the Reducing Tee due to its good thermal conductivity, corrosion resistance, and durability. Copper's malleability also allows for the creation of precise fittings with tight tolerances, ensuring a secure and leak-free connection when installed correctly.

Installation and Applications
The installation of the Refrigeration Reducing Tee Copper Tube requires precision and adherence to industry standards. It is typically soldered or brazed into place to ensure a secure and leak-free connection. The use of flux and a suitable soldering iron or torch is essential for a proper installation.

The Reducing Tee is used in various applications within the refrigeration and HVAC industry, including:

1. Residential and Commercial Air Conditioning Systems: In these systems, the Reducing Tee is used to connect the main refrigerant line to the evaporator and condenser coils, as well as to branch off to other components like expansion valves and filters.

2. Industrial Refrigeration Systems: In larger industrial settings, the Reducing Tee is crucial for managing the flow of refrigerant in complex systems that may involve multiple compressors, condensers, and evaporators.

3. Heat Pump Systems: The Reducing Tee is used in heat pump systems to control the flow of refrigerant between the indoor and outdoor units, as well as to branch off to additional components like heat exchangers.

4. Automotive Air Conditioning: In automotive applications, the Reducing Tee is used to manage the flow of refrigerant in the vehicle's air conditioning system, connecting the compressor, condenser, and evaporator.

Maintenance and Troubleshooting
Regular maintenance of the Reducing Tee is essential to ensure the efficiency and longevity of the refrigeration system. This includes checking for leaks, inspecting the soldered or brazed connections for cracks or corrosion, and ensuring that the fitting is clean and free of debris.

Troubleshooting issues related to the Reducing Tee may involve checking the pressure drop across the fitting, as an excessive drop may indicate a blockage or a faulty fitting. In such cases, the Reducing Tee may need to be replaced or cleaned to restore proper system function.

The Refrigeration Reducing Tee Copper Tube is a critical component in the efficient operation of refrigeration and HVAC systems. Its design, material properties, and proper installation are essential for maintaining the flow and pressure of refrigerant, ensuring the system operates at peak efficiency. By understanding the role of the Reducing Tee and following nice practices for installation and maintenance, technicians can ensure the reliability and performance of these critical systems.
