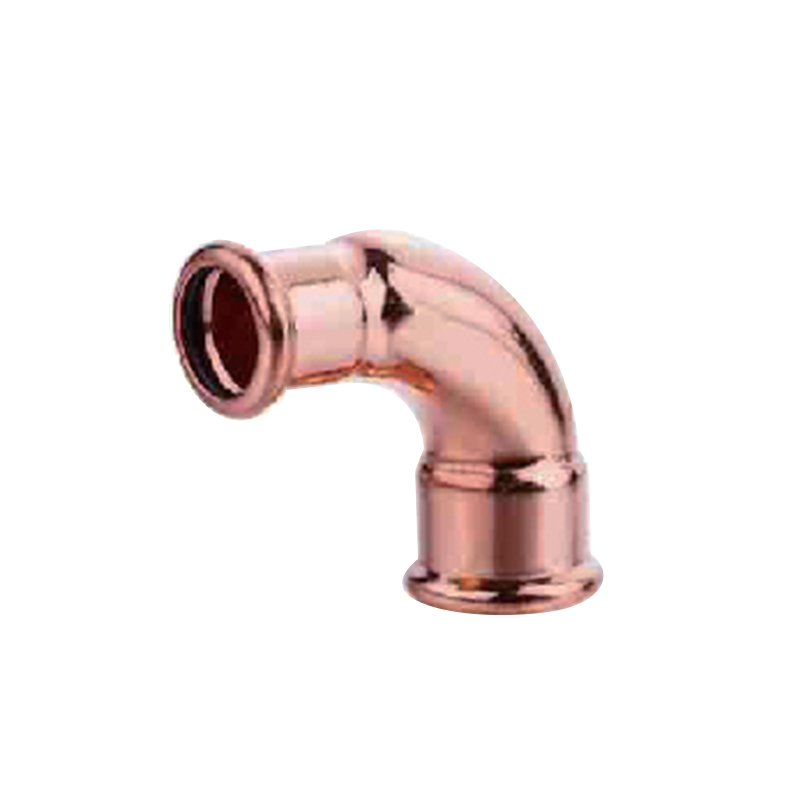

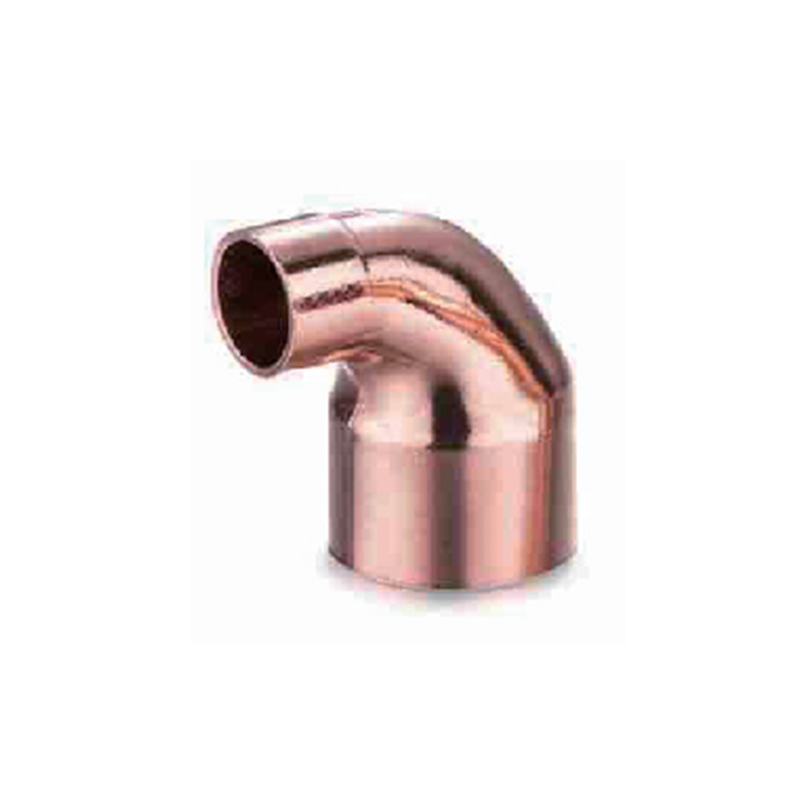

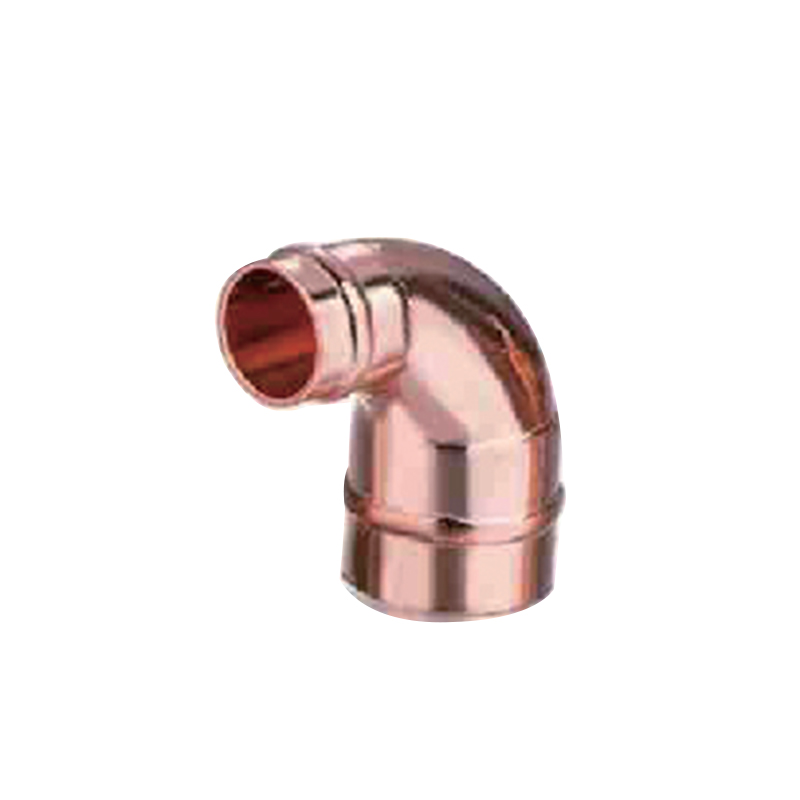

Reducing Elbow Refrigeration Copper Tube

The Reducing Elbow Copper Tube is a specialized type of copper tube fitting used in the HVAC (Heating, Ventilation, and Air Conditioning) and refrigeration industry. This fitting is designed to not only change the direction of the copper tube but also to reduce its size at the same time. This dual functionality makes it a versatile component in the installation and maintenance of refrigeration systems.

Material and Construction
Copper is the like material for these fittings due to its good properties. It is a durable metal with high thermal conductivity, which allows for efficient heat transfer. This is particularly important in refrigeration systems where the transfer of heat is a critical process. Copper also has good corrosion resistance, which means it can withstand the harsh conditions often found in refrigeration systems without degrading over time.

Applications
Reducing elbows are used in various applications within the HVAC and refrigeration industry. Some of the common uses include:
1. Refrigeration Systems: In commercial and industrial refrigeration systems, reducing elbows are used to connect pipes of different sizes, allowing for the efficient distribution of refrigerant.

2. Air Conditioning Units: They are used in the installation of air conditioning units to connect the condenser and evaporator coils, often changing the direction and size of the refrigerant lines.

3. Heat Exchangers: In heat exchanger systems, reducing elbows can be used to connect different sections of the exchanger, managing the flow of fluids and ensuring efficient heat transfer.

4. Custom Installations: Due to their ability to change direction and size, reducing elbows are often used in custom installations where space is limited, and a standard elbow would not fit.

Advantages
The use of reducing elbows in refrigeration systems offers several advantages:
1. Space Efficiency: By reducing the size of the tube, these elbows can help save space in tight installations, which is particularly useful in confined areas.

2. Cost-Effectiveness: Reducing the size of the tube can also reduce material costs, as less copper is required for the smaller diameter tube.

3. Pressure Drop Management: The reduction in tube size can help manage pressure drops in the system, which is important for maintaining the efficiency of the refrigeration cycle.

4. Compatibility: Copper reducing elbows are compatible with a wide range of refrigerants, making them a versatile choice for various systems.

Installation and Maintenance
Proper installation of reducing elbows is crucial for the performance of the refrigeration system. They should be installed by trained professionals to ensure that they are correctly aligned and securely fastened. The use of appropriate tools and techniques, such as flaring or soldering, is necessary to create a leak-proof connection.

Maintenance of these fittings involves regular inspections to check for signs of wear or damage. Since copper is a relatively soft metal, it can be susceptible to damage from impact or over-tightening. Regular lubrication of the connections can also help to prevent leaks and prolong the life of the fittings.

The Reducing Elbow Refrigeration Copper Tube is an essential component in the HVAC and refrigeration industry. Its ability to change the direction and size of copper tubes makes it a valuable tool for system designers and installers. With proper installation and maintenance, these fittings can contribute to the efficiency and longevity of refrigeration systems.
